The H-type High-Speed Press: Revolutionizing Metal Forming

The H-type high-speed press is a technological marvel that has revolutionized the metal forming industry. With its intricate design and advanced features, this press has proven to be a game-changer in terms of productivity, efficiency, and precision.

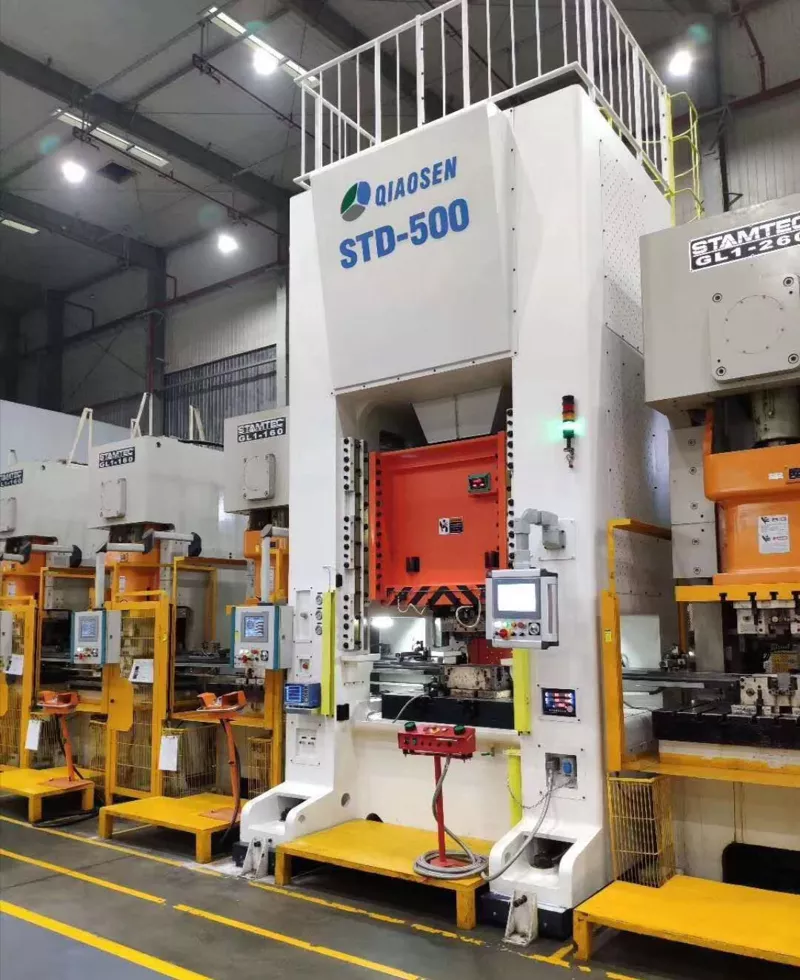

STD500 press，single crank，high-structure，high-precision

Definition and Structure:

The H-type high-speed press is a machine that uses hydraulic or mechanical force to shape and form metal sheets or parts. It is composed of a sturdy frame, an adjustable slide, a bolster plate, and a bed. The H-shape of the press gives it its name, as the frame is designed to resemble the letter H. This structure provides exceptional rigidity and stability, crucial for accurate and consistent metal forming operations.

Working Principle:

The working principle of the H-type high-speed press involves the conversion of mechanical or hydraulic energy into kinetic energy. The press is equipped with a powerful motor that drives the crankshaft, which in turn creates a reciprocating motion. This motion is transferred to the slide, allowing it to move up and down during the metal forming process.

Key Features:

1. High Speed: The H-type high-speed press is capable of achieving remarkable speed, allowing for faster production rates than traditional presses. This is achieved through the efficient transfer of energy from the motor to the slide, resulting in reduced cycle times and increased productivity.

2. Precision: The H-type press boasts superior precision owing to its robust structure. The rigid H-frame design minimizes deflection and ensures consistent and accurate results. Additionally, advanced control systems and sensors enable precise control of the press stroke, velocity, and pressure, further enhancing the precision of the metal forming process.

3. Versatility: The H-type press is highly versatile, accommodating a wide range of metal forming operations such as blanking, piercing, bending, embossing, and deep drawing. This adaptability makes it suitable for various industries, including automotive, aerospace, electronics, and appliance manufacturing.

4. Safety: Safety is a paramount consideration in any industrial setting, and the H-type high-speed press excels in this aspect. It features advanced safety mechanisms such as interlocks, emergency stops, and overload protection systems to prevent accidents and ensure operator well-being.

Advancements in H-type Press Technology:

Over time, the H-type high-speed press has undergone significant advancements to further optimize its performance. Some notable advancements include:

1. Servo Drive Systems: The integration of servo drive systems enables precise control over the slide motion, resulting in improved accuracy and repeatability. This technology also offers energy efficiency as it reduces power consumption during idle periods.

2. Automated Tool Changeouts: Automation has been introduced to facilitate quick and efficient tool changeouts. This feature saves valuable time in production and reduces downtime, leading to higher overall productivity.

3. Intelligent Control Systems: The incorporation of intelligent control systems has brought about increased automation and integration with other manufacturing processes. Real-time monitoring, data analysis, and predictive maintenance capabilities enhance operational efficiency and minimize downtime.

The H-type high-speed press has become an indispensable tool in the metal forming industry, offering unparalleled speed, precision, versatility, and safety. Its evolution through advancements in technology has further solidified its position as a leader in metal forming machinery. As manufacturing demands continue to evolve, the H-type high-speed press will undoubtedly continue to play a crucial role in shaping the future of metal forming processes.
