How to connect the wires after servo feeder machine arrived at your factory

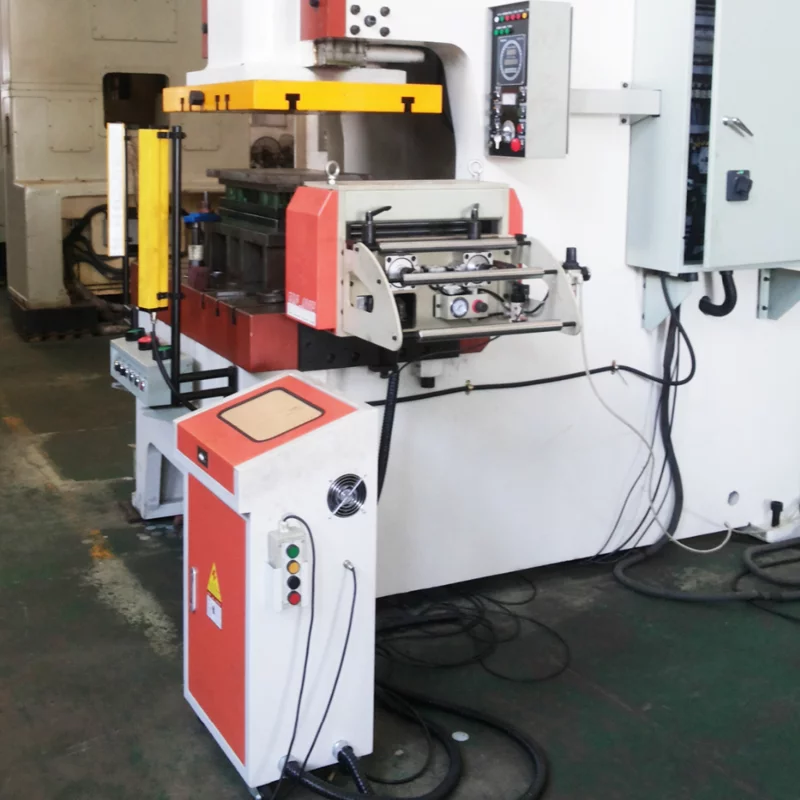

1. The 1^st step is installing the machine on the press machine and adjust the feeding line matched with other machine like straightening machine.

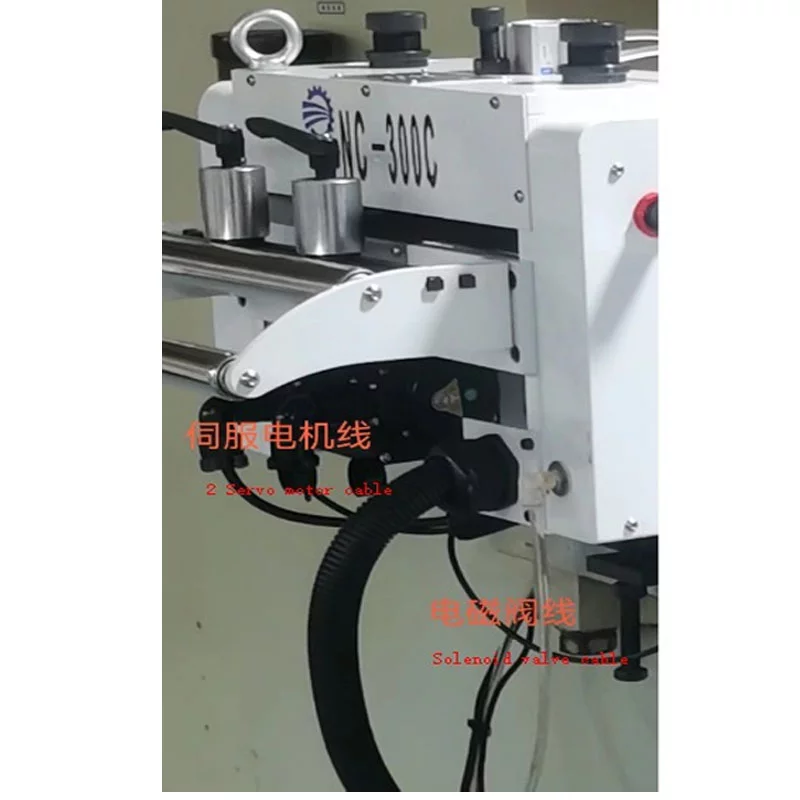

2. Usually all wires packed with electric box, so you can find them there. First find these cables , for the solenoid valve , when you connect them, you need to open the right side cover.

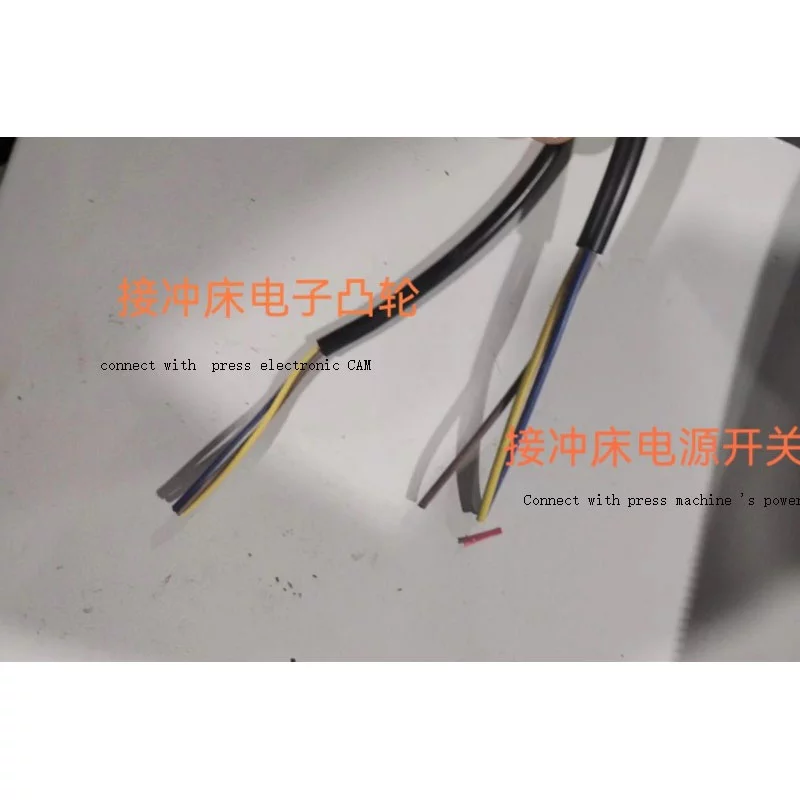

3. Then find these 2 group cables like the picture, one group thin and another thicker. The thin one is connected to the punch press cam, the yellow one is for the common terminal, the blue one is for feeding, and the brown one is for loosening and clamping. The thick one is connected to the punch press power switch.
