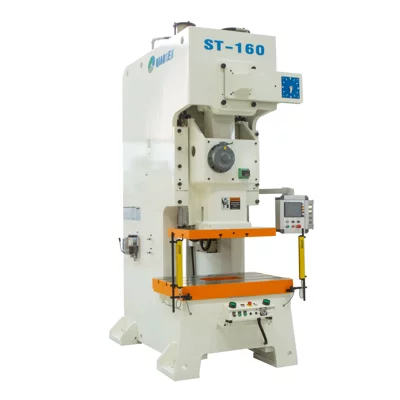

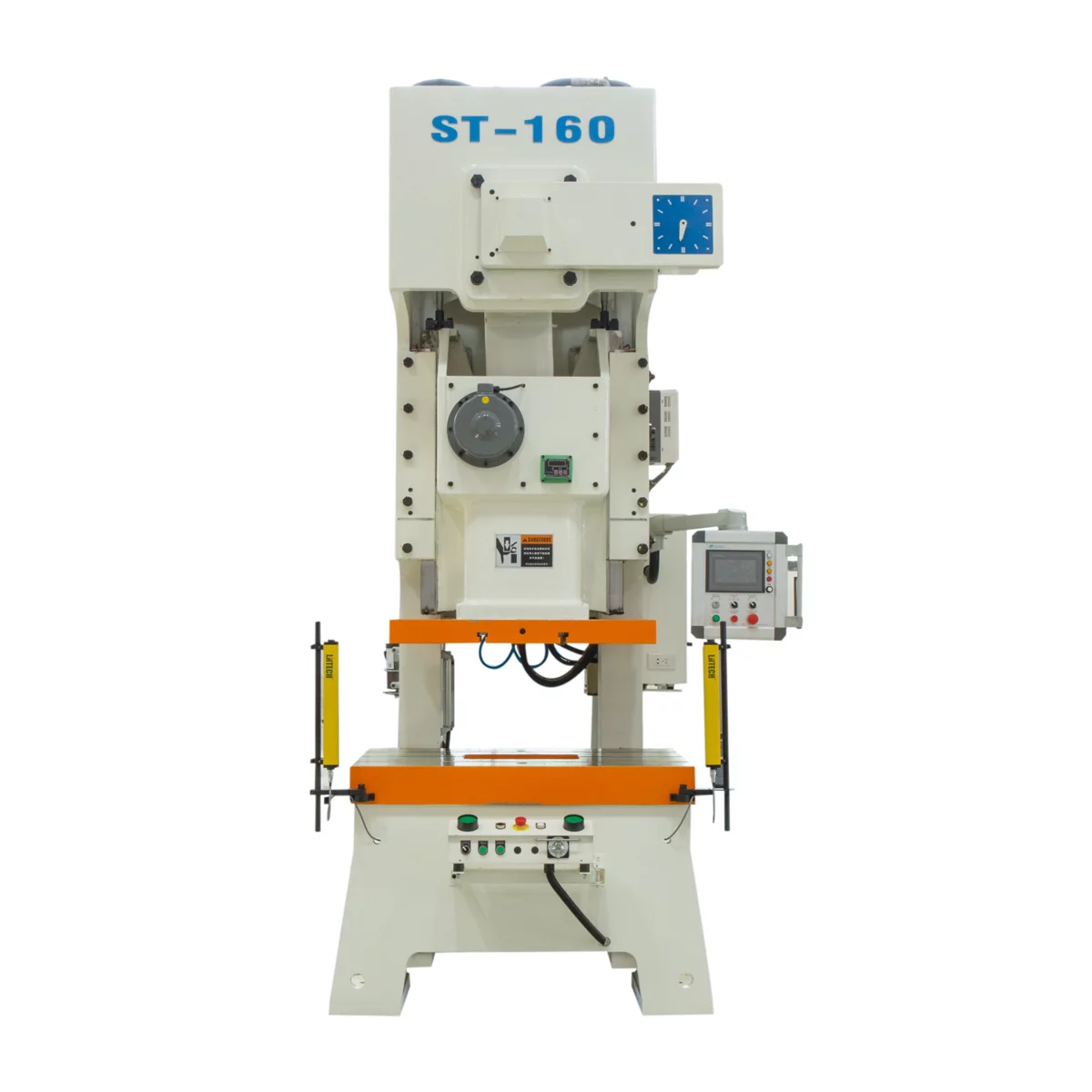

C Type Single Crank Press
Basic Attributes
- Model ST
- Press Type C Type Single Crank Pneumatic Press
- Press Capacity 25-400 ton
- Stroke Length 30-250 mm
- Press Speed 20-200 S.P.M.
- Control System Siemens PLC
- Drive System Siemens Motor
Product Overview
The ST series presses are C-Frame single crank presses meticulously designed by Qiaosen-Machinery for small-scale stamping applications, offering high-performance outputs，adhere to JIS1 grade accuracy standards.
Product Specification
| Specifications | Unit | ST-25v | ST-25h | ST-35v | ST-35h | ST-45v | ST-45h | ST-60v | ST-60h |
| Punching Capacity | Tons | 25 | 25 | 35 | 35 | 45 | 45 | 60 | 60 |
| Ability Occurence Point | mm | 3.2 | 1.6 | 3.2 | 1.6 | 3.2 | 1.6 | 4 | 2 |
| Slider Strokes Per Minute | S.P.M | 60-140 | 130-200 | 40-120 | 110-180 | 40-100 | 110-150 | 35-90 | 80-120 |
| Long Slider Length | mm | 60 | 30 | 70 | 40 | 80 | 50 | 120 | 60 |
| Max Mold Height | mm | 200 | 215 | 220 | 235 | 250 | 265 | 310 | 340 |
| Slider Adjustment Amount | mm | 50 | 50 | 55 | 55 | 60 | 60 | 75 | 75 |
| Up Platform Area | mm | 470×230×50 | 470×230×50 | 520×250×50 | 520×250×50 | 560×340×60 | 560×340×60 | 700×400×70 | 700×400×70 |
| Down Platform Area | mm | 680×300×70 | 680×300×70 | 800×400×70 | 800×400×70 | 850×440×80 | 850×440×80 | 900×500×80 | 900×500×80 |
| Main Motor Power | kW×P | 3.7×4 | 3.7×4 | 3.7×4 | 3.7×4 | 5.5×4 | 5.5×4 | 5.5×4 | 5.5×4 |
| Air Pressure | kg/c㎡ | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Machine Demension（L*W*H） | mm | 1280×850×2200 | 1280×850×2200 | 1380×900×2400 | 1380×900×2400 | 1575×950×2500 | 1575×950×2500 | 1595×1000×2800 | 1595×1000×2800 |
| Machine Weight | tons | 2.1 | 2.1 | 3 | 3 | 3.8 | 3.8 | 5.6 | 5.6 |
NOTE: Our company is prepared to conduct research and improvement work at any given time. As a result, the size design characteristics outlined in this catalogue may be subject to change without prior notice.
Product Details
● The high-strength fuselage structure ensures minimal deformation and high precision.
● Equipped with OMPI pneumatic dry clutch brake for reliable performance.
● The slider features 2-corner and 6-sided guides for enhanced stability and accuracy.
● Slider guides undergo "high-frequency quenching" and "rail grinding process" for reduced wear, increased precision, prolonged maintenance intervals, and extended service life.
● The crankshaft is constructed from high-strength alloy 42CrMo, providing 1.3 times the strength of 45 steel.
● The copper sleeve is made of tin phosphor bronze ZQSn10-1, offering 1.5 times the strength of ordinary BC6 copper.
● Incorporates a highly sensitive hydraulic overload protection device to safeguard the press and extend die service life.
● Optional mat (air cushion) is available for customization.
