NC Feeder
Basic Attributes
- Coil Width 200-1300 mm
- Coil Thickness Max 3.2 mm
- Feeding Speed 16 m/min
- Feeding Accuracy ±0.15 mm
- Model NC
Product Overview

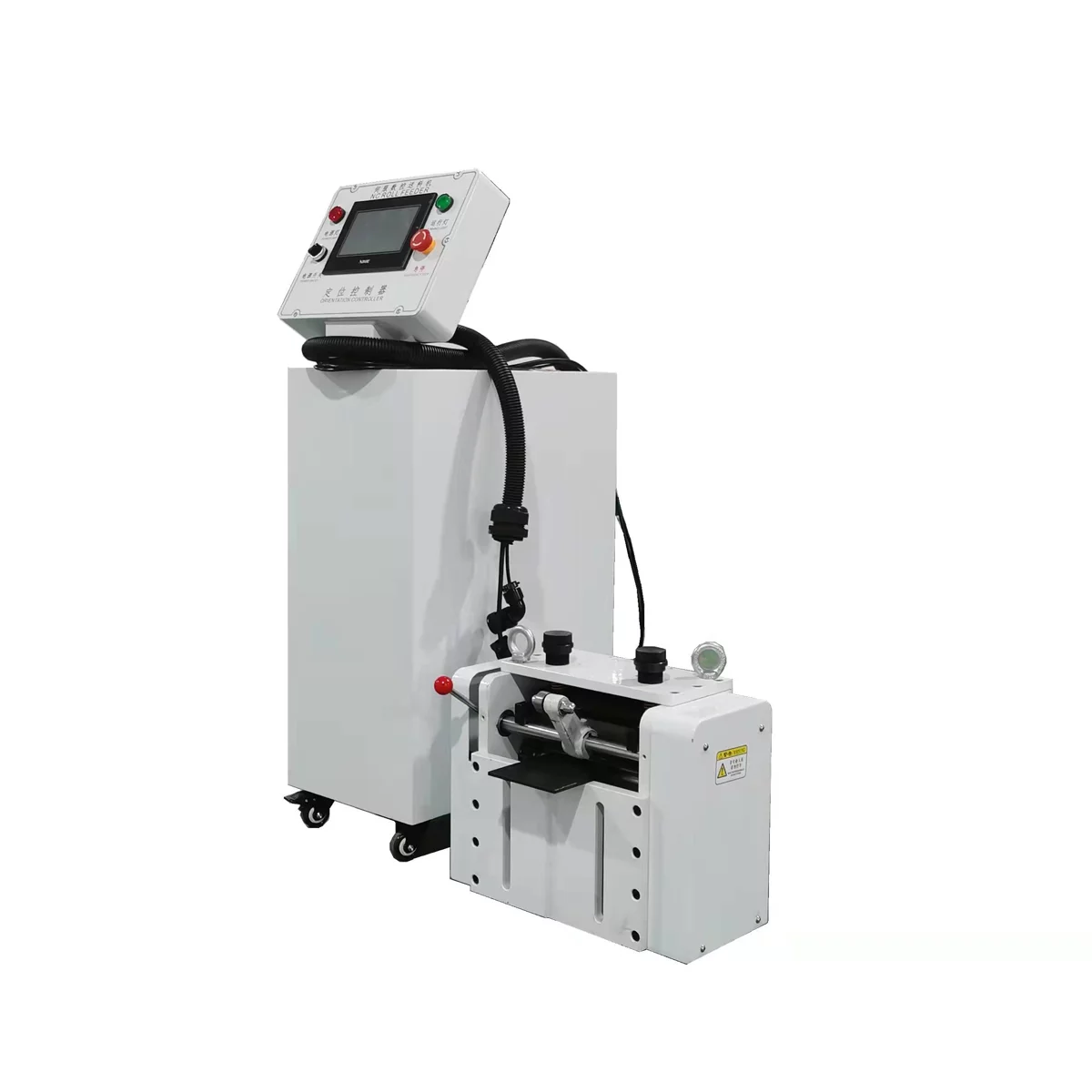

NC Feeder （NC Servo Roll Feeder）is a versatile and high-speed solution for material handling. With programmable settings, intuitive operation, and multiple language options, it offers precision and flexibility.
Product Specifications
| Item name | Unit | NC-200 | NC-300 | NC-400 | NC-500 | NC-600 | NC-800 | NC-1000 | NC-1300 |
| Width of material | mm | 200 | 300 | 400 | 500 | 600 | 800 | 1000 | 1300 |
| Thickness of material | mm | MAX3.2 | |||||||
| Feeding capacity | / | 200W*2.3T | 300W*2.0T | 400W*2.0T | 500W*1.6T | 600W*1.6T | 800W*1.6T | 1000W*1.5T | 1300W*1.2T |
| 80W*3.2T | 80W*3.2T | 80W*3.2T | 200W*3.2T | 150W*3.2T | 150W*3.2T | 110W*3.2T | 110W*3.2T | ||
| Feeding length | mm | 0.01-9999.99 | |||||||
| Roll pressure | / | Spring type | |||||||
| Releasing system | / | Pneumatic type | |||||||
| Pass line adjustment | mm | 50 | |||||||
| Power supply | / | AC380V/3phase | |||||||
Product Details
1. It can feed material for various thicknesses and feeding stroke length.
2. It suits for high speed feeding, long stroke length feeding, to improve production capacity and feeding precision.
3. With a good operation panel, so users can input feeding length number, feeding speed number freely. Feeding length range is 0.01mm-9999.99mm.
4. It adopts pneumatic cylinder releasing method, without malfunction.
5. Mechanical releasing method can be made according to customers requirement.
6. High precision feeding, ±0.02mm.
7. User can input 5 sets of different feeding length. For each length, user can input 999 strokes quantity number.
8. User can use this feeder, under normal manual running mode, with normal manual speed. It is easy to feed steel material to stamping mould easily for user.
9. Releasing device for a roller is high effective, as per press machine’s cam position electronic signal, and steel material thickness.
10. User inputs feeding length number at a touch screen by finger, feeder can feed steel material to reach that length.
11.Feeding roller is hollow, surface hardness is HRC60, with chrome plating.
