MT Decoiler
Basic Attributes
- Coil Width 200-600 mm
- Coil Thickness Max 3.0 mm
- Model MT
Product Overview

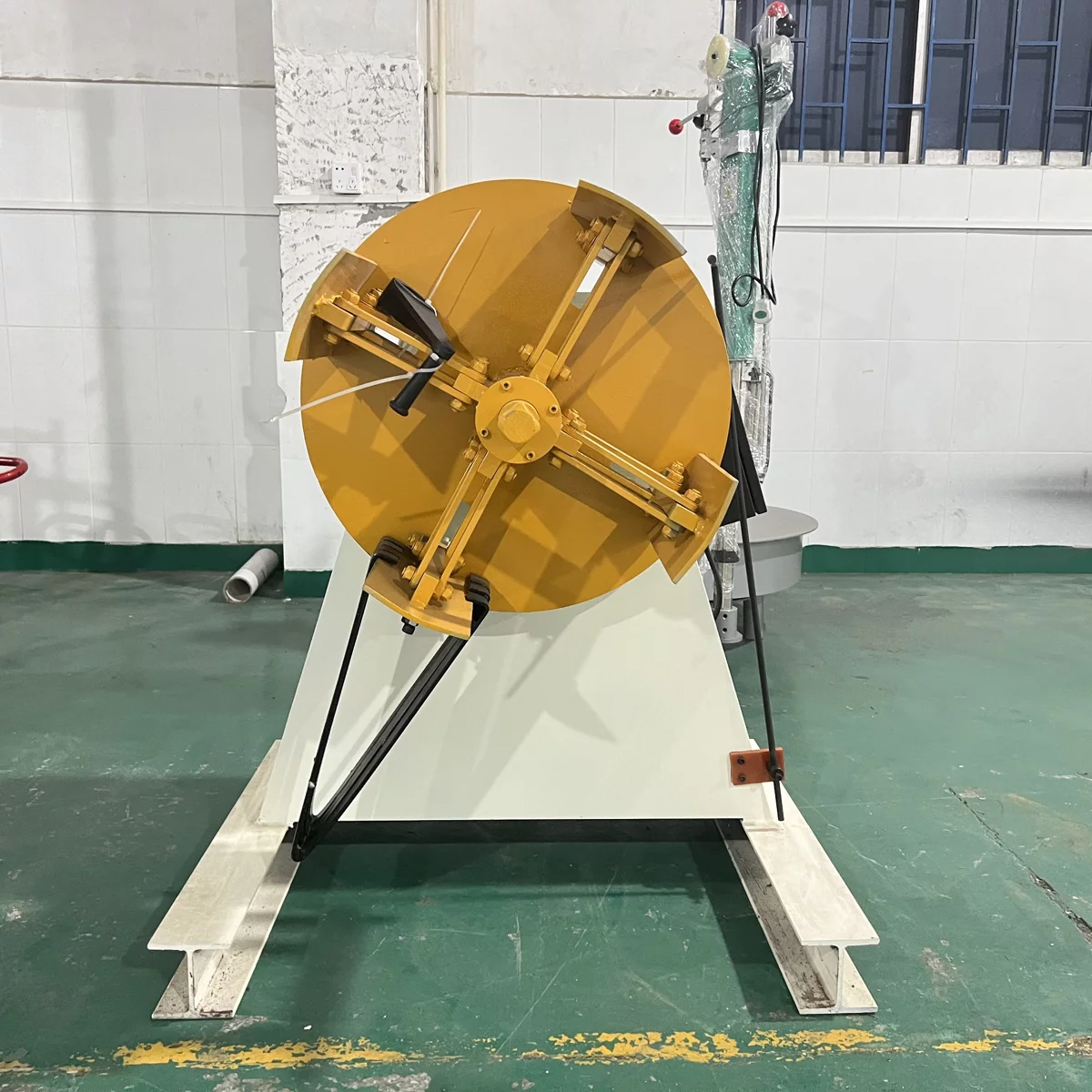

MT Decoiler designed for handling heavier and wider coils, are versatile and can be paired with straighteners and feeders to create a comprehensive coil feeding system. This fully-automatic equipment enhances the efficiency and safety of handling coils.
Product Specifications
| Item name | Unit | MT-200 | MT-300 | MT-400 | MT-500 | MT-600 |
| Max width | mm | 200 | 300 | 400 | 500 | 600 |
| Steel plate thickness | mm | 0-1.6 | 0-3.0 | 0-3.0 | 0-3.0 | 0-3.0 |
| Speed reducer | / | 1/60 | ||||
| Motor HP | HP | 1 | ||||
| Coil inside diameter | mm | 300/460 | 450/530 | |||
| Coil outside diameter | mm | 1200 | ||||
| Max material weight | kg | 500 | 1000 | 2000 | 2000 | 2000 |
| Machine weight | kg | 320 | 372 | 450 | 450 | 485 |
Product Details
Features：
1.Versatility in Material Handling:
Suitable for the collection and delivery of various coil materials, both thin metal and non-metal materials.
2.Motor Power Enhancement:
Motor power can be added to match the feeding device.
3.Adjustable Tension and Reinforced Shaft:
●The tension of the brake device is adjustable for precise control.
●The main shaft employs a reinforced design, ensuring smooth rotation of the material reel and enhancing load force.
4.Automation for Press Production:
Essential components for fully automatic press production, reducing the need for manpower, optimizing material resources, lowering costs, and achieving ideal production results.
5.Reliability with Imported Parts:
Imported parts are used, with fewer failures and long life.
Options device：
●Pressing Arm
●Hydraulic Expansion
●Hydraulic Support Feed Device
●Adjustable Speed Motor
