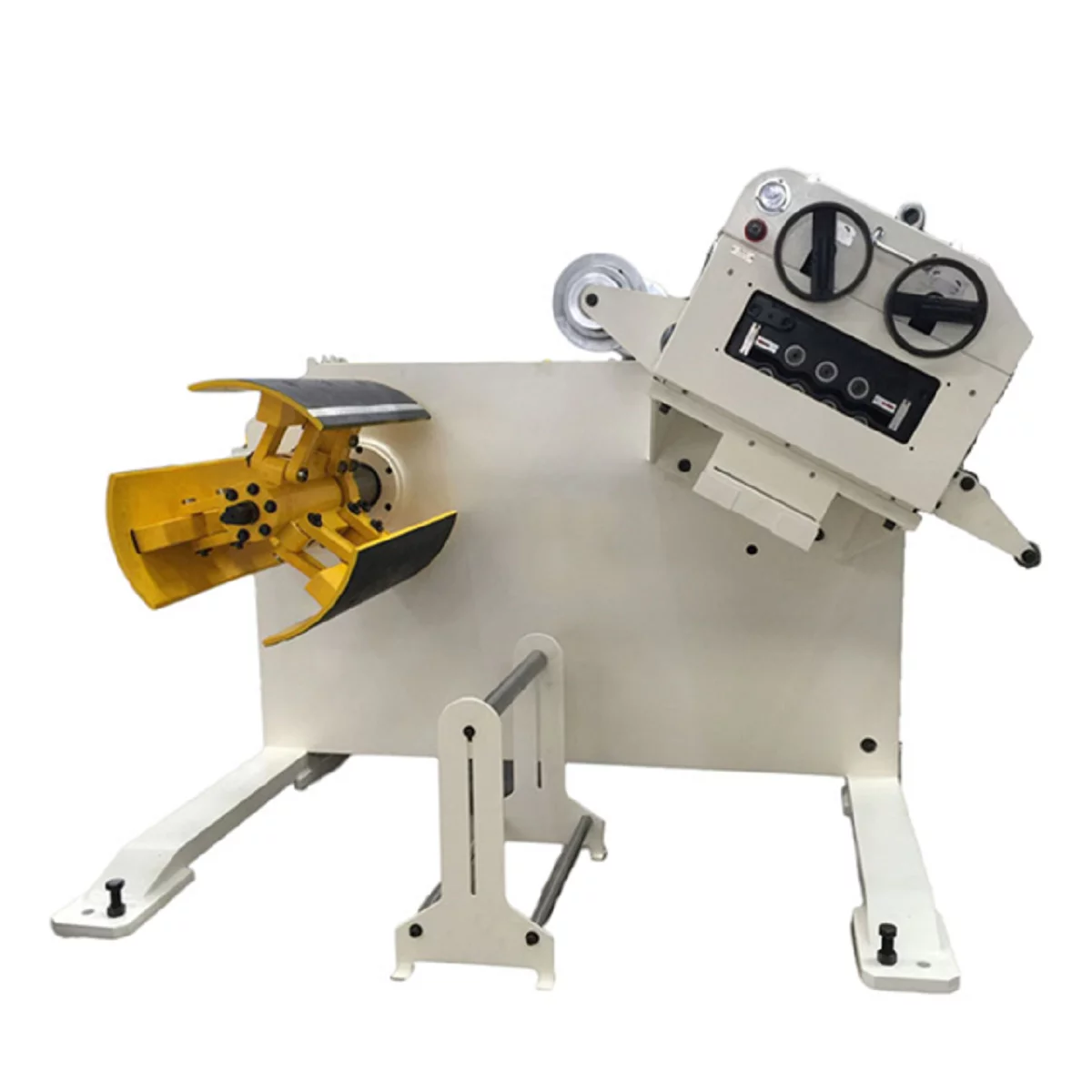

BML 2-in-1 straightening and uncoiling machine
Basic Attributes
- Coil Width 150-600 mm
- Coil Thickness 0.5-3.2 mm
- Model BML
Product Overview
BML 2-in-1 straightening and uncoiling machine：
The BML series 2-in-1 straightening and uncoiling machine offers versatility, making it suitable for handling various coil materials, including thin metal and non-metal materials.
●Versatility:
Suitable for collecting and delivering various coil materials, including thin metal and non-metal materials.
●Motor Power Enhancement:
Motor power can be added to match the feeding device, providing flexibility in operational adjustments.
●Adjustable Tension and Reinforced Shaft:
The tension of the brake device is adjustable for precise control.
The main shaft employs a reinforced design, ensuring smooth rotation of the material reel and enhancing load force.
●Automation for Press Production:
Essential equipment for fully automatic press production processes.
Significantly reduces the need for manpower, optimizes material resources, lowers costs, and achieves ideal production results.
●Reliability with Imported Parts:
Incorporates imported parts, resulting in fewer failures and an extended operational lifespan.
Product Specifications
| Item name | Unit | BML-150 | BML-200 | BML-300 | BML-400 | BML-500 | BML-600 |
| Max Coil Width | mm | 150 | 200 | 300 | 400 | 500 | 600 |
| Rack Load | kg | 500 | 1000 | 1500 | 2000 | 2000 | 3000 |
| Coil Thickness | mm | 0.5-3.2 | |||||
| Coil Inner Diameter | mm | 460-540 | |||||
| Coil Inside Diameter | mm | 1200 | |||||
NOTE: Our company is prepared to conduct research and improvement work at any given time. As a result, the size design characteristics outlined in this catalogue may be subject to change without prior notice.
